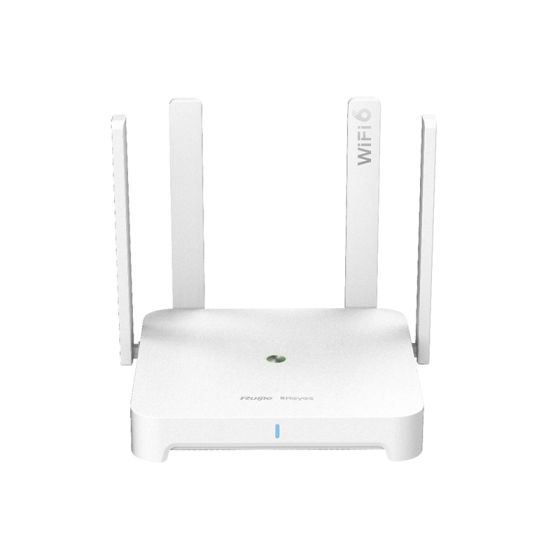

Ruijie / Reyee Router รุ่น RG-EW1800GX PRO
RG-EW1800GX PRO
Ruijie / Reyee Router รุ่น RG-EW1800GX PRO
- Ruijie Reyee RG-EW1800GX PRO เป็นเราเตอร์ไร้สาย Wi-Fi 6 แบบดูอัลแบนด์ Gigabit ที่ออกแบบมาเพื่อใช้ในพื้นที่ราบขนาดใหญ่ วิลล่า ร้านค้าขนาดเล็ก SOHO และสถานการณ์อื่นๆ
ข้อมูลทางเทคนิค
Model |
RG-EW1800GX PRO |
Wireless Parameters |
2.4 GHz, 2×2, maximum rate of 600Mbps 5 GHz, 2×2, maximum rate of 1200Mbps |
4 external non-detachable omnidirectional antennes |
|
802.11a/b/g/n/ac/ax and DL/UL MU-MIMO |
|
Independent 2.4 GHz and 5 GHz modules and dual-band mode |
|
Wi-Fi channel: 2.4GHz :2.4G~2.4835GHz 5GHz :5.150~5.250GHz,5.250~5.350H,5.470~5.725GH,5.725~5.850GHz |
|
Beamforming, OFDMA, and BSS color technologies |
|
Ports |
One 10/100/1000M WAN port (Auto MDI/MDIX) |
Four 10/100/1000M LAN ports (Auto MDI/MDIX) |
|
One Reyee Mesh LED indicator and one system LED indicator |
|
One Reyee Mesh button (front) and one system reset button (rear) |
|
One power port |
|
Physical |
Dimensions (W × D × H): 180 mm × 180 mm × 30 mm (excluding antennas) |
Weight: 1.125 kg (including packages) |
|
Power Supply |
Power specifications: DC 12 V, 1.5 A |
Maximum power: < 18 W |
|
Certification |
CE |
Operating Environment |
Operating temperature: –10℃ to +45℃ Storage temperature: –40℃ to +70℃ Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) |
Software Specifications
Model |
RG-EW1800GX PRO |
Main features |
PPPoE, DHCP, static IP address for network connection Acquisition of PPPoE accounts from old routers Dual-band mode Priority to 5G Wireless Transmission Power adjustment Automatic channel adjustment Guest Wi-Fi Rate limiting for terminal IP addresses Static DHCP address Virtual server DDNS DMZ UPnP |
Network security |
WPA-PSK/WPA2-PSK encryption SSID hiding Wi-Fi squatter prevention (Blacklist) Network access control IP & MAC Binding Firewall |
Advanced features |
Reyee Mesh: Supported by EW Series Routers. Enables Mix & Match, Self-Healing, etc Wireless roaming; Hardware NAT; One-click network optimization; Issue diagnosis; Remote maintenance on the cloud; Auto and manual software upgrade on the cloud; Silent upgrade of cloud software; |
Management modes |
Local web pages Ruijie Cloud App: iOS edition and Android edition |
