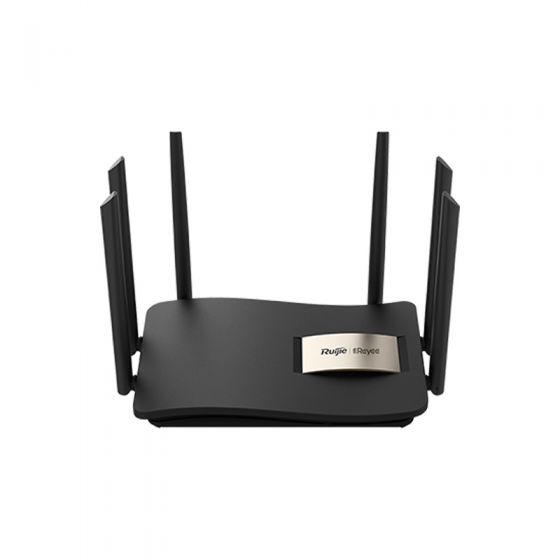

Ruijie / Reyee Router รุ่น RG-EW1200G PRO
RG-EW1200G PRO
Ruijie / Reyee Router รุ่น RG-EW1200G PRO
- Ruijie Reyee RG-EW1200G PRO เป็นเราเตอร์ไร้สายสำหรับผู้บริโภคแบบ dual-band Gigabit ที่ออกแบบมาสำหรับห้องทุกประเภทและสถานการณ์ SOHO อื่น ๆ มาพร้อมกับ Wi-Fi มาตรฐาน 802.11ac Wave2 รุ่นต่อไปที่เร่งความเร็วได้ถึง 1267Mbps ซึ่งช่วยให้สามารถสตรีม 4K และเล่นเกมออนไลน์ได้อย่างเสถียร
ข้อมูลทางเทคนิค
|
eless specifications |
2.4GHz 2*2: maximum rate 400Mbps; 5GHz 2*2: maximum rate 867Mbps |
|
Antenna: External 6dBi non-removable omnidirectional antennas |
|
|
Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO |
|
|
Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual frequency integration |
|
|
Support beamforming |
|
|
Wi-Fi channel: |
|
|
2.4GHz Channel： 1,2,3,4,5,6,7,8,9,10,11,12,13 |
|
|
5GHz Channel： 36,40,44,48,149,153,157,161,165 |
|
|
Ports |
1 10/100/1000M WAN port（Auto MDI/MDIX） |
|
3 10/100/1000M LAN ports（Auto MDI/MDIX） |
|
|
1 blue system LED indicator, 4 network port LED indicators |
|
|
1 device pairing/factory reset button |
|
|
1 power input interface |
|
|
Physical specifications |
Dimensions：220x140x36mm (W×D×H, excluding antennas) |
|
Weight：0.98kg（entire equipment including packaging） |
|
|
Power supply |
Power specification: DC12V 1.5A |
|
Maximum power: <14W |
|
|
Certification |
CCC，SRRC |
|
Operating environment |
Operating temperature: 0-45℃ |
|
Storage temperature: -40-70℃ |
|
|
Operating humidity: 5%-95%RH (non-condensing) |
|
|
Storage humidity: 5%-95%RH (non-condensing) |
|
Main features |
Routing mode: PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay |
|
Obtain PPPoE account from the old router |
|
|
Wi-Fi dual-band separation/ integration |
|
|
Guest Wi-Fi; smart home Wi-Fi; wireless network isolation |
|
|
Static DHCP address |
|
|
Virtual server: port mapping, DMZ, etc. |
|
|
DDNS: Oray |
|
|
UPnP |
|
|
Network security |
Wireless security: WPA-PSK/WPA2-PSK encryption |
|
ARP protection: IP/MAC binding |
|
|
SSID hiding |
|
|
Preventing rogue devices (Blacklist/whitelist) |
|
|
Internet access control |
|
|
Advanced features |
Reyee Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices |
|
Wi-Fi optimization: Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment |
|
|
Bandwidth management: hardware NAT, intelligent bandwidth allocation |
|
|
Auto network inspection, fault diagnosis |
|
|
Software upgrade: Automatic & manual cloud software upgrade |
|
|
Management mode |
Local web page |
|
Cloud management: MACC cloud platform |
|
|
Ruijie Cloud app: iOS version, Android version |
