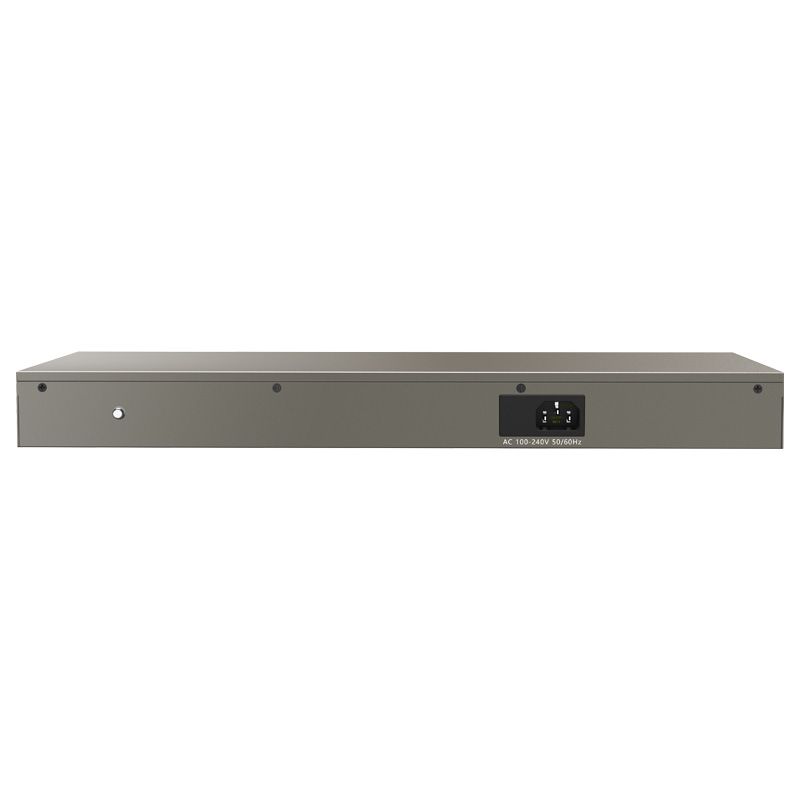

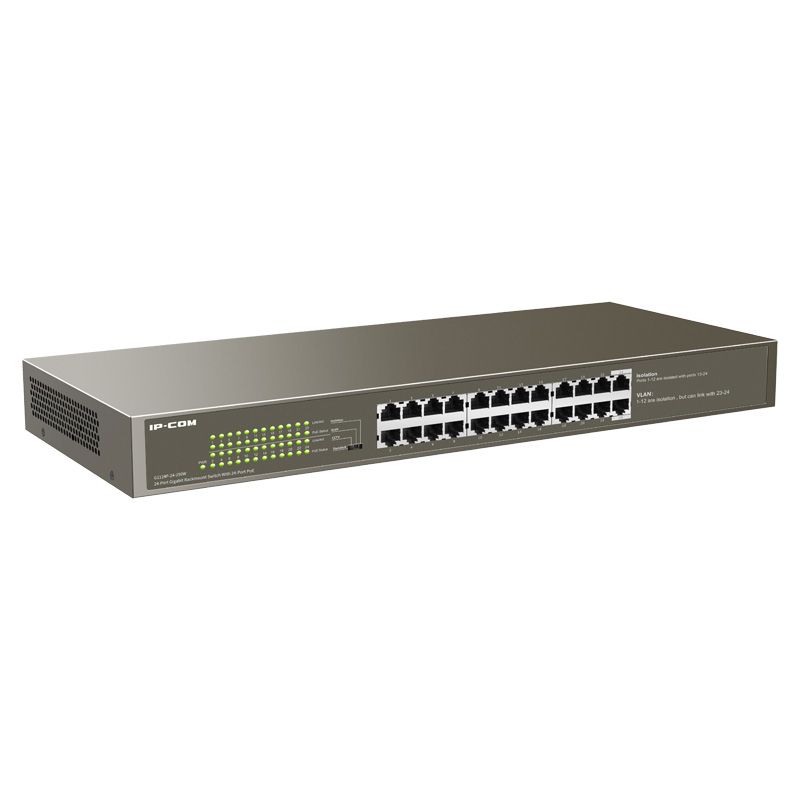

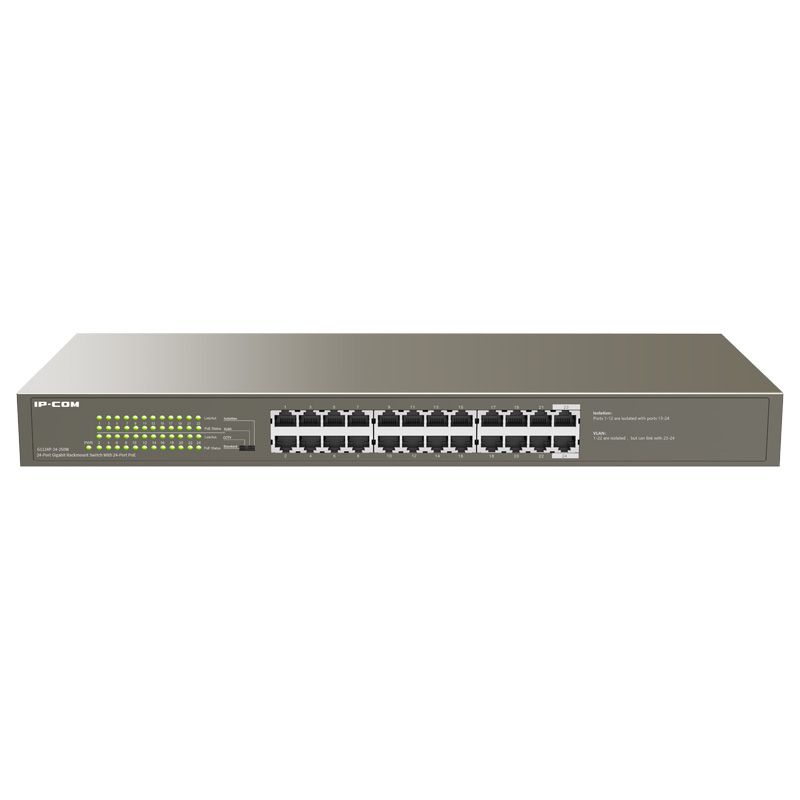

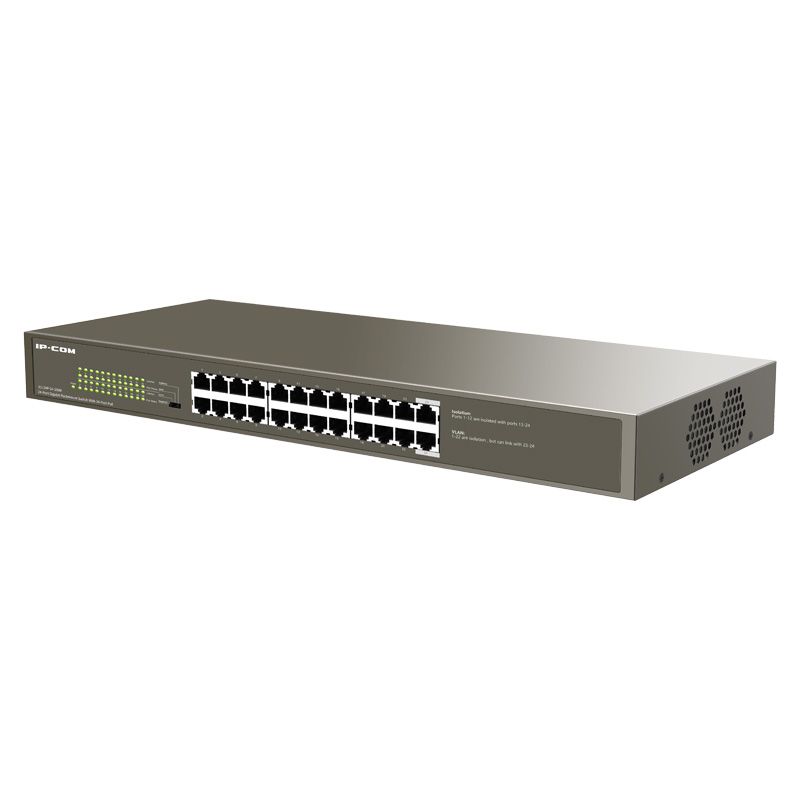

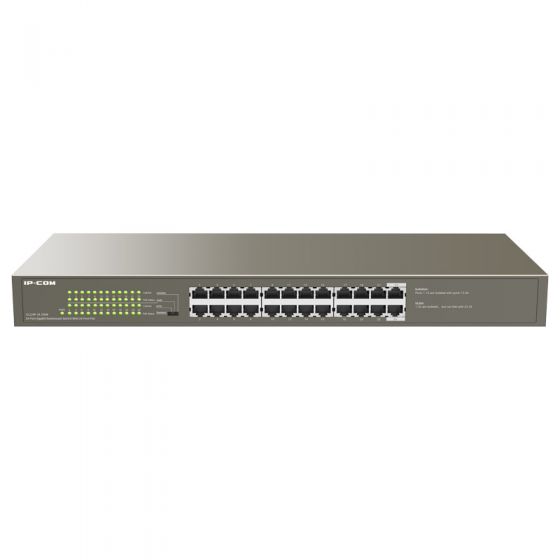

IP-COM Swicth รุ่น G1124P-24-250W
รายละเอียดโดยย่อ
G1124P-24-250W
IP-COM Swicth รุ่น G1124P-24-250W
- G1124P-24-250W เป็นสวิตช์ IP-COM ที่มีพอร์ต RJ45 24 10/100 / 1000M พอร์ต 1-24 เป็นไปตามมาตรฐาน IEEE802.3af (เอาต์พุต PoE สูงสุด: 15.4w) และมาตรฐาน 802.3at (กำลังไฟ PoE สูงสุดเอาต์พุต: 30 W)
ข้อมูลทางเทคนิค
| Standard&Protocol | IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab、IEEE802.3af、IEEE802.3at |
| Indicator | 24*Link/Act per device 24*PoE per device 1*Power per device |
| Interface | 24 10/100/1000Base-T ports(Data/Power) |
| Port | Lightning Protection 6KV |
| Store and forward | Yes |
| Exchange Capacity | 48 Gbps |
| Packet forwarding rate | 35.7Mpps |
| MAC Address Table | 8K |
| PoE supply management | Port 1-24 support IEEE802.3at/af PoE standard |
| PoE through pin | 1 2 4 5 +;3 6 7 8 - |
| Voltage input range | AC: 100-240V～50/60Hz |
| Dimensions | 440*178*44mm( W x D x H ) |
| Power Consumption | in full configuration:<250W PoE Max Power Supply:225W |
| Port Features | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other. VLAN: ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24 (uplink ports) respectively. Isolation：ports 1 to 14 and ports 15 to 24 belong to two different VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other. |
| Operating|Storage Temperature | 0℃~40℃ (32℉~104℉) | -40℃~70℃ (-40℉~158℉) |
| Operating|Storage Humidity | 10%~90% non-condensing | 5%~90% non-condensing |
