IP-COM Swicth รุ่น G1116P-16-150W
รายละเอียดโดยย่อ
G1116P-16-150W

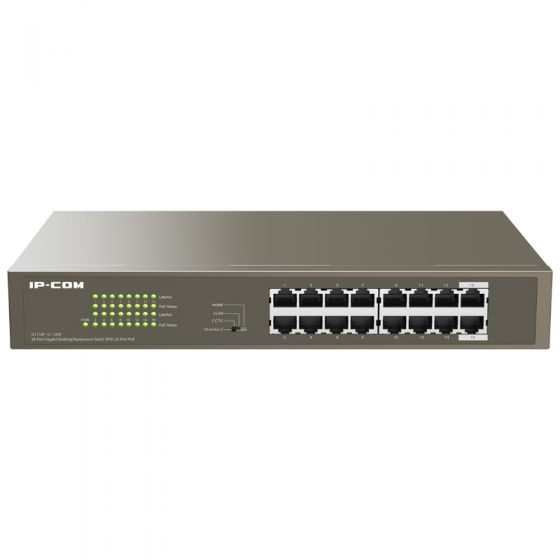

IP-COM Swicth รุ่น G1116P-16-150W
- G1116P-16-150W เป็นสวิตช์ IP-COM ที่มีพอร์ต RJ45 10 10/100 / 1000M พอร์ต 1-16 เป็นไปตามมาตรฐาน IEEE802.3af (กำลังไฟ PoE สูงสุด: 15.4w) และมาตรฐาน 802.3at (กำลังไฟ PoE สูงสุด เอาท์พุท: 30 W)
ข้อมูลทางเทคนิค
| Model | G1116P-16-150W |
| Standard&Protocol | IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab、IEEE802.3af、IEEE802.3at |
| Indicator | 16*Link/Act per device 16*PoE per device 1*Power per device |
| Interface | 16 10/100/1000Base-T ports(Data/Power) |
| Port | Lightning Protection 6KV |
| Store and forward | Yes |
| Exchange Capacity | 32 Gbps |
| Packet forwarding rate | 23.6Mpps |
| MAC Address Table | 8K |
| PoE supply management | Port 1-16 support IEEE802.3at/af PoE standard |
| PoE through pin | 1 2 4 5 +;3 6 7 8 - |
| Voltage input range | AC: 100-240V～50/60Hz |
| Dimensions | 294*178*44mm( W x D x H ) |
| Power Consumption | in full configuration:<150W PoE Max Power Supply:135W |
| Port Features | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other. VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively. Isolation：ports 1 to 14 and ports 15 to 24 belong to two different VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other. |
| Operating|Storage Temperature | 0℃~40℃ (32℉~104℉) | -40℃~70℃ (-40℉~158℉) |
| Operating|Storage Humidity | 10%~90% non-condensing | 5%~90% non-condensing |
