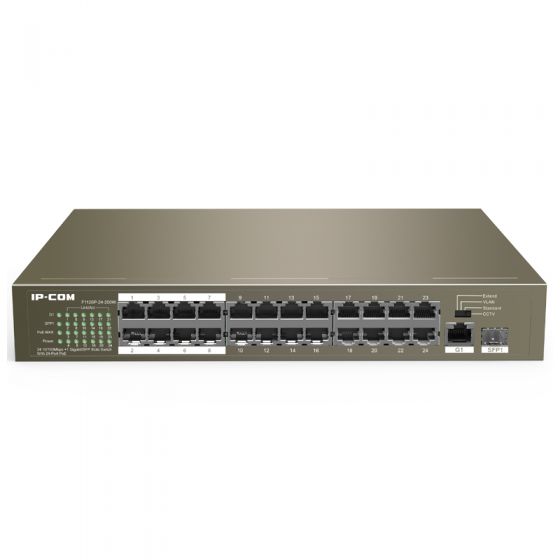

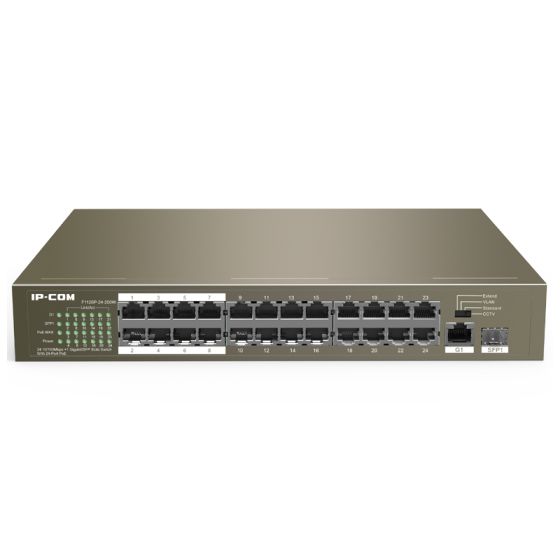

IP-COM Swicth รุ่น F1126P-24-250W
รายละเอียดโดยย่อ
F1126P-24-250W
IP-COM Swicth รุ่น F1126P-24-250W
- F1126P-24-250W เป็นสวิตช์ PoE ที่ไม่มีการจัดการออกแบบโดย IP-COM สอดคล้องกับมาตรฐาน IEEE 802.3af และ IEEE 802.3at ซึ่งสามารถระบุอุปกรณ์ที่ใช้ PoE ได้อย่างชาญฉลาด
ข้อมูลทางเทคนิค
| Midel | F1126P-24-250W |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at |
| LED indicators | 24 * Link/Act LEDs 1 * G1 LED 1 * G2/SFP2 LED 1 * PoE-MAX LED 1 * Power LED |
| Interfaces | 24 * 10/100 Mbps Base-TX RJ45 ports (Data/Power) 2 * 10/100/1000 Mbps Base-T RJ45 ports (Data) 1 * 1000 Mbps Base-X SFP port (Combo) |
| Lightning protection | Port: 6kV Power: 6kV |
| Forwarding mode | Store-and-forward |
| Switching capability | 8.8 Gbps |
| Packet forwarding rate | 6.55 Mpps |
| Buffer | 4 Mbit |
| MAC address table | 16K |
| PoE supply | Ports 1-24 support standard IEEE802.3af/at 30W output per PoE port 230W output of the total PoE Power |
| Power consumption | 250W output the whole device |
| Input voltage | AC：100-240V～ 50/60Hz |
| Dimensions | 440 mm x 178.8 mm x 44 mm(L*W*H) |
| Four Modes | "Standard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately. Priority: In this mode, port G1 and G2/SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately. Extend: In this mode, data rate of ports 17 - 24 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other. VLAN: In this mode, ports 1 - 24 of the switch can communicate with port G1, G2/SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast." |
| Operating environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | CCC、FCC、CE、RoHS |
