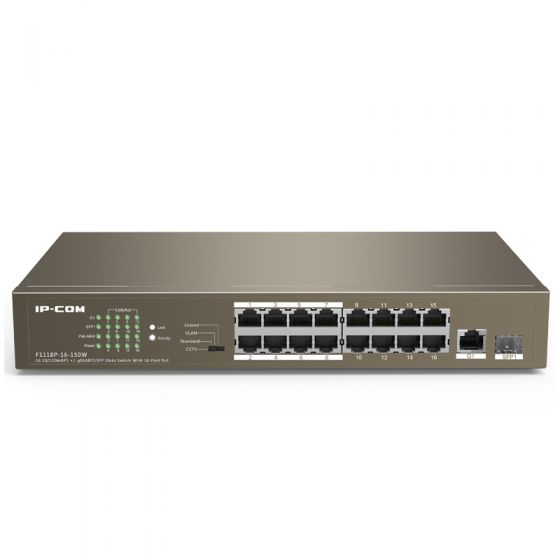

IP-COM Swicth รุ่น F1118P-16-150W
รายละเอียดโดยย่อ
F1118P-16-150W
IP-COM Swicth รุ่น F1118P-16-150W
- IP-COM F1118P-16-150W POE Switch 16 Port ความเร็ว 100Mbps พร้อม 1 Port GIgabit Uplink/ SFP, จ่ายไฟ POE 802.3af/at ทั้ง 16 Port รวม 135W รองรับการเดินสาย Lan สูงสุด 250เมตร @10Mbps
ข้อมูลทางเทคนิค
| Model | F1118P-16-150W |
| Standard&Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af |
| MTBF | 100,000hours |
| Indicator | 16*Link/Act per device 1*G1 Link/Act per device 1*SFP Link/Act per device 1*PoE-MAX per device 1*Power per device |
| Interface | 16 10/100Base-TX ports(Data/Power) 1 10/100/1000Base-T port(Data) 1 1000Base-X SFP port |
| Port Lightning Protection | 6KV |
| Store and forward | Yes |
| Exchange Capacity | 7.2 Gbit/s |
| Packet forwarding rate | 5.36Mpps |
| MAC Address Table | 4K |
| PoE supply management | Port 1 to Port 16 support IEEE802.3at/af POE standard |
| PoE through pin | 1 2 4 5 +,3 6 7 8 - |
| Voltage input range | AC:100-240V~ 50/60Hz |
| Dimensions | 294*178*44mm( W x D x H ) |
| Power Consumption | in full configuration:<150W PoE Max Power Supply:135W |
| Port Features | CCTV: 1-8 ports based CoS, If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device to which the monitoring computer connects. This ensures smoother monitoring video playback. Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: In this mode,1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports.Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing? Extend: In this mode, the data rate of 1-8 port of the switch is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other. |
| Environment | Operating Temperature: 0~40C (32~104) Storage Temperature: -40~70C (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
