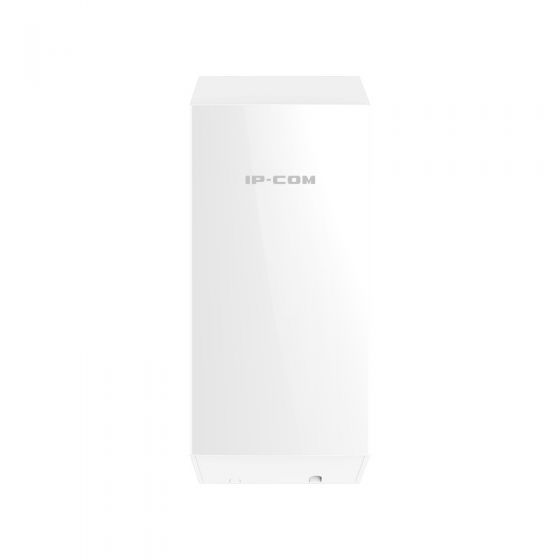

IP-COM Point to Point Outdoor CPE รุ่น CPE6
รายละเอียดโดยย่อ
CPE6
IP-COM Point to Point Outdoor CPE รุ่น CPE6
- CPE6 5GHz Long Range Outdoor CPE ออกแบบมาเพื่อโซลูชั่น WISP CPE และโซลูชันเครือข่ายไร้สายทางไกลสำหรับการเฝ้าระวังวิดีโอและการส่งข้อมูล
ข้อมูลทางเทคนิค
| Model | CPE6 |
| Dimensions | 193.5*80*67.5mm |
| Deployment | Pole Mount |
| Application Scenarios | WISP CPE, Data transmission and Long range video surveillance |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n |
| Private TDMA Protocol | IMAX |
| Maximum Wireless Rate | 300Mbps |
| Interfaces | 1*10/100Mbps Ethernet Port |
| Antennas Gain | 12dbi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° |
| Reset Button | 1 |
| DC Jack | 1 |
| Power Consumption | 6.3W |
| Waterproof Level | IP65 |
| LED indicator | PoE/LAN,WiFi LED1,LED2,LED3 |
| Power Method | 12V1A Passive PoE or DC Adapter |
| Lightning Protection | 6000V |
| Passive PoE | Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) Voltage range: 11-13.8V DC |
| Receiver sensitivity | MCS0: -96dbm MCS7: -72dbm |
| Operating mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth | 10/20/30/40MHz |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software -- CPE Controller |
| Package Contents | 1*2km Point to Point Outdoor CPE 1*Power Adapter 1*PoE Injector 2*Plastic Staps 1*Quick Installation Guide |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certifications | FCC/CE/RoHS |
