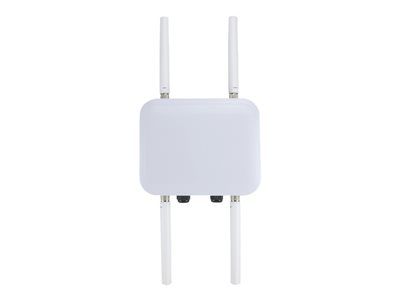

Edgecore รุ่น ECWO5211-L

Outdoor Access Point Concurrent Dual-Band 11ac Wave 2 Outdoor AP

Physical
Power: PoE: 802.3at compliant or 48 V/0.5 A passive PoE injector
Dimensions: 25.0 cm (L) x 20.0 cm (W) x 8.0 cm (H)
1.53 kg (3.37 lbs) (Including antennas)
Interfaces:
• Uplink: 1 x 10/100/1000BASE-T Ethernet, Auto MDIX, RJ-45 with
802.3at PoE
• LAN: 1 x 10/100/1000BASE-T Ethernet, Auto MDIX, RJ-45 LED
Indicator: Power/LAN1/LAN2/2.4 GHz/5 GHz Environmental
Conditions:
• Operating Temperature: -40°C (-40°F) to 65°C (149°F)
• Operating Humidity: 10% to 95% non-condensing
Power Consumption: 20 W max.
Antenna:
• Type: 4 x external N-type connectors (2 x 2.4 GHz, 2 x 5 GHz), 1
x built-in PIFA (1 x BLE), 1 x built-in patch (1 x GPS)
• Gain: 5 dBi (2.4 GHz), 7 dBi (5 GHz), 2 dBi (BLE)
Mounting: Pole mount hose clamp

Wi-Fi
Standards:
• 802.11a/b/g/n/ac; Wave 2
• Concurrent dual-band 2.4 and 5 GHz
Supported Data Rates:
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 – 144 Mbps (20 MHz)
• 802.11n: 13.5 – 300 Mbps (40 MHz)
• 802.11ac: 6.5 – 173.4 Mbps (20 MHz)
• 802.11ac: 13.5 – 400 Mbps (40 MHz)
• 802.11ac: 29.3 – 866.6 Mbps (80 MHz)
Radio Chains: 2 x 2
Spatial Streams: 2 ; MU-MIMO support
Output Power:
• 2.4 GHz: Up to 23 dBm*1
• 5 GHz: Up to 23 dBm*1
Channelization: 20 MHz, 40 MHz, 80 MHz
Frequency Band: 2.412 – 2.472 GHz, 5.180 – 5.825 GHz*3
Operating Channels:
• 2.4 GHz: 1 – 11 (US), 1 – 13 (Europe), 1 – 13 (Japan)
• 5 GHz*2
: 36 – 165 (US), 36 – 140 (Europe), 100 – 140 (Japan)
ESSIDs: Up to 16 per radio (32 total)
Certifications: FCC (United States), CE (Europe)
