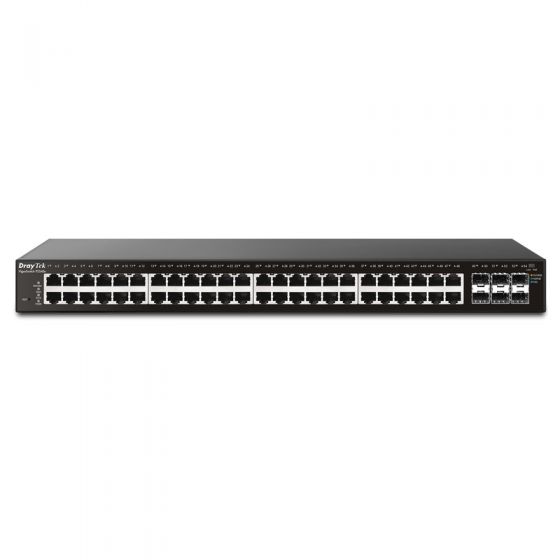

DrayTek Swicth รุ่น VigorSwitch P2540x

- DrayTek VigorSwitch P2540x เป็นสวิตช์ 10 Gbps ที่มีการจัดการเลเยอร์ 2+ ด้วยพอร์ต 48x Gigabit Ethernet PoE + ที่ให้งบประมาณพลังงาน 400W และลิงค์ไฟเบอร์ 6x SFP + 10Gbps

ข้อมูลทางเทคนิค

LAN Port	48x 10/100/1000Mbps Ethernet, RJ-45 6x 1000Mbps/10Gbps SFP+ slot
Console Port	1x RJ-45
Slide Switch	1 (Port/PoE LED)
Button	1x Factory Reset Button
PoE Capable Ports	48
PoE Standards	PoE/PoE+(802.3af/802.3at), Type mode A
PoE Power Budget	400 watts
Power Limit
Scheduled On/Off
Power Cycle on Port	Manual, Ping Watchdog
Buffer Size	16 Mbit
Switching Capacity	216 Gbps
Forwarding Rate	160.7 Mpps (64 bytes)
MAC Address Table	32k
Jumbo Frame	Up to 12 KB
L3 Routing Table	Max. 2k
IP Version	IPv4, IPv6
Ethernet Standards	802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T IEEE802.3ae 10GBase-X 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1ad QinQ 802.1x Port Access Control 802.1AB LLDP 802.3az EEE
Max.Number of VLAN	256
VLAN Type	802.1q Tag-based MAC-based Protocol-Based Management VLAN Voice VLAN Surveillance VLAN
802.1x Guest VLAN
Port Isolation
GVRP
Q-in-Q	Basic
Discovery
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance	Device Info, Reset Factory Default, Time Settings, Reboot
Number of QoS Queues	8
Queue Scheduling	SPQ, WRR
CoS (Class of Service)	802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit & Shaping
Access Control List	MAC, IPv4, IPv6
Storm Control	Broadcast, Unknown Multicast, Unknown Unicast
DoS Defense
802.1x Port Access Control
IP Source Guard
IP Conflict Detection
IP Conflict Prevention
Loop Protection
Dynamic ARP Inspection
DHCP Snooping with Option 82
Max. Number of Group	8
Max. Number of Member in Each Group	8
Type	Static, LACP
Traffic Load Balancing	MAC Address, IP/MAC Address
IGMP Snooping	v2, v3 (BISS)
IGMP Querier
MLD Snooping	v1, v2 (Basic)
Max. Number of Multicast Group	256
Group Throttling
Group Filtering
MVR (Multicast VLAN Registration)
Static Route
VLAN Route
DHCP Server
Authentication Server	RADIUS, TACACS+
Port Authorization
Management Account
RADIUS Attribute Assignment	User Privilege, VLAN
Accounting
Multiple Server
Web Interface	HTTP, HTTPS
Command Line Interface	Telnet, SSH v2
OpenVPN Client	Certificate-based authentication
User Authentication	Local Database, RADIUS, TACACS+
sFlow
SNMP	v1, v2c, v3
Private MIB
RMON Group	1, 2, 3, 9
LLDP	LLDP-MED, Media Endpoint Discovery Extension
Mail Alert	Port Status, Port Speed, System Restart, IP Conflict
Syslog
2-Level Admin Privilege
Multiple Admin Accounts
Managed by VigorRouter SWM
Managed by VigorConnect
Managed by VigorACS 2
Config File Export/Import
Dual Image
SNTP (Simple Network Time Protocol)
Diagnostics Tools	Port Mirroring, Ping, Cable Test, Fan Test
19-inch Rack Mountable	Mouting Kit Included
Power Input	AC 100-240V @ 5.5A
Max. Power Consumption	478 watts
Dimension (mm)	441(W) x 330(D) x 45(H)
Weight	5.66 kg (12 lb)
Ventilation	Variable-speed Fan
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 70°C
Operating Humidity	10 to 90% non-condensing
Storage Humidity	5 to 90% non-condensing
Certificate
