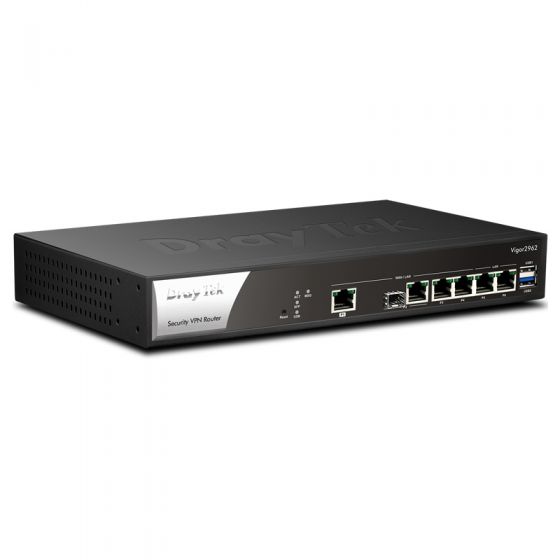

DrayTek Router รุ่น Vigor2962P

- Vigor2962 เป็นเราเตอร์ไฟร์วอลล์แบบไดนามิกประสิทธิภาพสูงพร้อมพอร์ต WAN / LAN ที่กำหนดค่าได้ ด้วยการเลือกพอร์ต 2.5GbE พอร์ต 1GbE Fibre และพอร์ต 1GbE 2 พอร์ตผู้ใช้สามารถตั้งค่าพอร์ต 2 พอร์ตเป็น WAN เพื่อวัตถุประสงค์ในการโหลดบาลานซ์ / เฟลโอเวอร์และเพลิดเพลินไปกับทรูพุต NAT 2.2Gbps โดยรวม

ข้อมูลทางเทคนิค

WAN/LAN Switchable Port	1x 2.5G Ethernet, RJ-45 1x GbE/SFP Combo 2x GbE, RJ-45 *up to 2 simultaneous WANs
Fixed LAN Port	2x GbE, RJ-45
USB Port	1x USB 2.0 + 1x USB 3.0 for storage* (since f/w v3.9.6)
NAT Throughput w/ Hardware Acceleration	2.2 Gbps
IPsec VPN Performance	800 Mbps (AES 256 bits)
SSL VPN Performance	500 Mbps
NAT Sessions	300,000*(since f/w v3.9.6, 150,000 with f/w v3.9.3.1 or before)
Max. Concurrent VPN Tunnels	200
Max. Concurrent OpenVPN + SSL VPN	50
IPv4	PPPoE, DHCP, Static IP
IPv6	PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Load Balancing	IP-based, Session-based
WAN Active on Demand	Link Failure, Traffic Threshold
Connection Detection	ARP, Ping, Strict ARP
WAN Data Budget	(since f/w v3.9.6)
Dynamic DNS
DrayDDNS
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	20
Number of LAN Subnet	20
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication	Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, OSPF, BGP
Policy-based Routing	Protocol, IP Address, Port, Domain, Country
High Availability
DNS Security (DNSSEC)
Multicast	IGMP Proxy*, Bonjour(since f/w v3.9.6)
Local RADIUS server
LAN-to-LAN
Teleworker-to-LAN
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN)
User Authentication	Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication	Pre-Shared Key, X.509
IPsec Authentication	SHA-1, SHA-256, MD5
Encryption	MPPE, DES, 3DES, AES
VPN Trunk (Redundancy)	Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
NAT	Port Redirection, Open Ports, Port Triggering, DMZ Host
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Service Type
VoIP Prioritization
Local Service	HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control	Access List, Brute Force Protection
Notification Alert	SMS, E-mail
SNMP	v1, v2c, v3
Syslog
Central AP Management	50 VigorAP
Central Switch Management	30 VigorSwitch
Rack Mountable	Mouting Kit Included
Power Supply	AC 100-240V @ 1A
Max. Power Consumption	15 watts
Dimension	273 mm x 171 mm x 45 mm
Weight	1.3 kg
Operating Temperature	0 to 45°C
Storage Temperature	-25 to 70°C
Operating Humidity (non-condensing)	10 to 90%
Certificate
