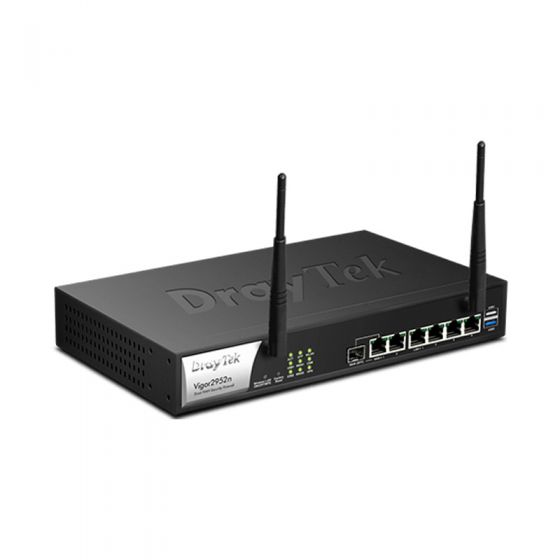

DrayTek Router รุ่น Vigor2952n

- Vigor2952 เป็นเราเตอร์ไฟร์วอลล์ VPN แบบบรอดแบนด์แบบ Dual-WAN ที่ออกแบบมาสำหรับธุรกิจที่ต้องการความน่าเชื่อถือและความปลอดภัยในเครือข่ายสำนักงานของตน

ข้อมูลทางเทคนิค

WAN Port	1x GbE/SFP Combo port + 1x GbE port
LAN Port	4x GbE
USB Port	1x USB 3.0 + 1x USB 2.0
NAT Throughput	500 Mbps
NAT Throughput w/ Hardware Acceleration	900 Mbps
IPsec VPN Performance	200 Mbps (AES 256 bits)
SSL VPN Performance	90 Mbps
Max. Number of NAT Sessions	60,000
Max. Concurrent VPN Tunnels	200
Max. Concurrent OpenVPN + SSL VPN	50
IPv4	PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6	PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
Multi-VLAN/PVC
3G/4G/LTE WAN with USB modem
Load Balancing	IP-based, Session-based
WAN Active on Demand	Link Failure, Traffic Threshold
Connection Detection	ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	8
Number of LAN Subnet	8
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
PPPoE Server
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication	Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP
Policy-based Routing	Protocol, IP Address, Port, Domain, Country
High Availability
DNS Security (DNSSEC)
Multicast	IGMP Proxy, IGMP Snooping, Bonjour
Local RADIUS server
SMB File Sharing	(Requires external storage)
LAN-to-LAN
Teleworker-to-LAN
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN(Host to LAN)
User Authentication	Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication	Pre-Shared Key, X.509
IPsec Authentication	SHA-1, SHA-256, MD5
VPN Redundancy	Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
NAT	Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323, TFTP
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
Local Service	HTTP, HTTPS, Telnet, SSH v2, TR-069, FTP, SNMP
Config File Export & Import
Config File Compatibility	Vigor2925, Vigor2920, Vigor2930, Vigor2950, Vigor2955
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control	Access List, Brute Force Protection
Syslog
Notification Alert	SMS, E-mail
SNMP	v1, v2c, v3
Managed by VigorACS
Central VPN Management	8 VPN
Central AP Management	30 VigorAP
Central Switch Management	10 VigorSwitch
Rack Mountable	Mouting Kit Included
Power Supply	AC 110-220V @ 1A
Max. Power Consumption	15 watts
Dimension	273mm x 171mm x 45mm
Weight	1.94kg
Operating Temperature	0 to 45°C
Storage Temperature	-20 to 70°C
Operating Humidity	10 to 90% (non-condensing)
Certificate
