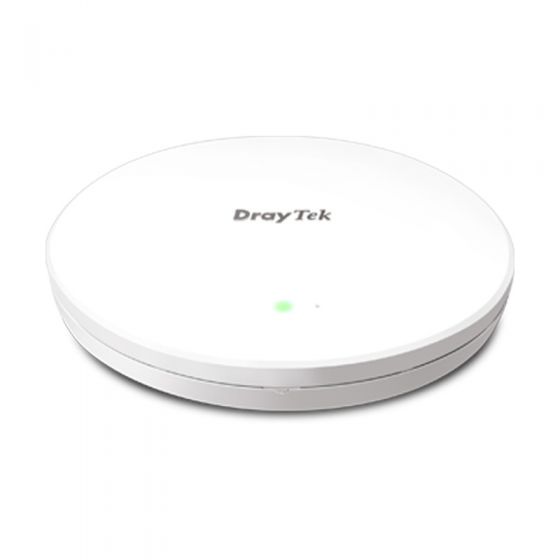

DrayTek Access Point รุ่น VigorAP 960C

- VigorAP 960C เป็นจุดเชื่อมต่อไร้สายแบบติดเพดาน 11ax ด้วยความเร็วที่ชอบใช้สายสูงถึง 1.2 Gbps ในย่านความถี่ 5GHz และ 600Mbps ใน 2.4GHz จึงเหมาะสำหรับสภาพแวดล้อมที่มีความหนาแน่นสูง

ข้อมูลทางเทคนิค

LAN Port	1x 10/100/1000M Base-T, RJ-45 (PoE-PD Support)
Antenna	2x Internal PiFA Dual-Band Gain: 3 dBi for 5GHz, 1.3 dBi for 2.4GHz
Button	1x Factory Reset Button
DC Power Jack	1
Security Lock	1
2.4GHz Peak Speed	600 Mbps
5GHz Peak Speed	1200 Mbps
Max. Number of Concurrent Active Clients	256 (128 per radio band)
2.4GHz Standard	IEEE 802.11b/g/n/ax 2x2 MIMO
5GHz Standard	IEEE 802.11a/n/ac Wave 2/ax 2x2 MU-MIMO
Operating Mode	AP, Mesh Root, Mesh Node, Range Extender
Roaming	AP-Assisted Roaming, PMK-Caching, Pre-Authentication
AirTime Fairness
Band Steering
Auto Channel Selection
Max. Number of SSID	8 (4 per radio band)
WDS
Client Numer Limit	Per radio, Per SSID
Connection Time Control
WMM
Security Mode	WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication	Personal, Enterprise
WPS	PIN, PBC
Hidden SSIDs
MAC Address Filter	Up to 256 entries
Wireless Client Isolation
Mobile Device Management
Built-in RADIUS Server
RADIUS Proxy	PEAP, EAP-TLS
Hotspot Web Portal
DHCP	DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP
MAC Clone
802.1q VLAN
Schedule	Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Local Service	HTTP, HTTPS, Telnet
Configuration	Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade	HTTP, TFTP, TR-069
Tools	Speed Test, AP Discovery, Statistics, Interference Monitor
Configuration Backup and Restore
Syslog
Mail Alert
SNMP	v1, v2c, v3
Managed by VigorConnect
Managed by VigorACS
Central AP Management	30 VigorAP
Environment	Indoor
Mounting	Ceiling Mount, Wall Mount
Power Method	DC 12V @ 1A / 802.3af PoE
Max. Power Consumption	11 watts
Dimension	178 mm x 178 mm x 35 mm
Weight	380 g
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Operating Humidity	10 to 90% non-condensing
Certificate
