Product Specification

Overview

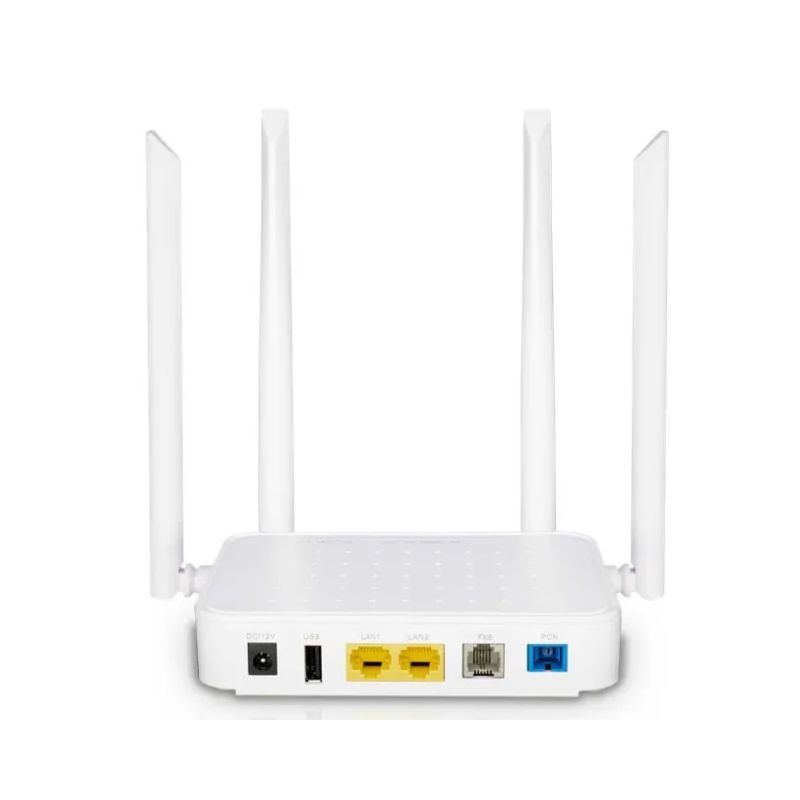

BDCOM GP1705-2GV FTTH/O xPON ONU, 1 GPON/EPON port (SC/UPC), 2GE, 1 POTS, 1 USB, external four WiFi antennas(1200M WiFi), plastic hull, DC12V/1.5A external adaptor

PON ports

1 SC/UPC

UNI ports

2 GE TX

WIFI

1200Mbps

Voice

USB

Optical power

TX power: 0.5~5dBm
RX sensitive: <-28dBm

AC adaptor

Input: 100-240V AC
Output: 12V/1.5A

Max. consumption (W)

Dimensions (WxDxH mm)
Weight(Kg)

140 x 105 x 30
0.3

Operating

Temperature: -0℃ -45℃
Humidity: 10%~85% (non-condensing )

Storage

Temperature: -40℃ -85℃
Humidity: 5%-95% (non-condensing )

Technical Specifications

Standards

ITU-T G.984/G.988
IEEE802.3ah
GBT33845-2017, YD/T 1475-2006
IEEE 802.1Q, VLAN
ITU-T Y.1291

VLAN

4K VLAN
Port based VLAN
IEEE 802.1Q VLAN
Tag/Transparent/Aggregation/Trunk/Translation mode VLAN
CTC2.0 defined VLAN

IP Service

DHCP server/client
Routing/Bridging/Hybrid mode
DNS, DDNS
PPPOE
NAT/NAPT

xPON Service

AES128 algorithm encryption
MAC/Loid/Hybrid authentication

QoS

Backpressure flow control (half-duplex)
IEEE 802.3x flow control (full duplex)
Against Head of Line mechanism
IEEE 802.1p, CoS
Four priority queues on each port
WR, SP and FIFO queue schedule algorithms
Port rate limit
SLA and DBA

Reliability

Management modes including CLI, HTTP, SNMP, TR069 and TELNET
Software upgrade through TFTP and WEB, OMCI, etc.
Local or server syslog

Voice Service

SIP, T.38 FAX
Three-way calling
Call waiting
Hot-line calling

Network Security

MAC address number limit
MAC filter
Port protect

Multicast

IGMP-Snooping
CTC defined dynamic multicast function
MLD-Snooping
Multicast group limitation
Multicast fast-leave

Reliability

Loop detection
Dying-Gasp
TX/RX optical power alarm

Wireless

802.11b/g/n/ac
2x2 MIMO
Multi SSID
SSID encryption
Wireless channel
(configurable)
