BDCOM รุ่น GP1702-1G
รายละเอียดโดยย่อ
GP1702-1G
BDCOM รุ่น GP1702-1G
ข้อมูลทางเทคนิค
|
Product Specification |
|
|
Overview |

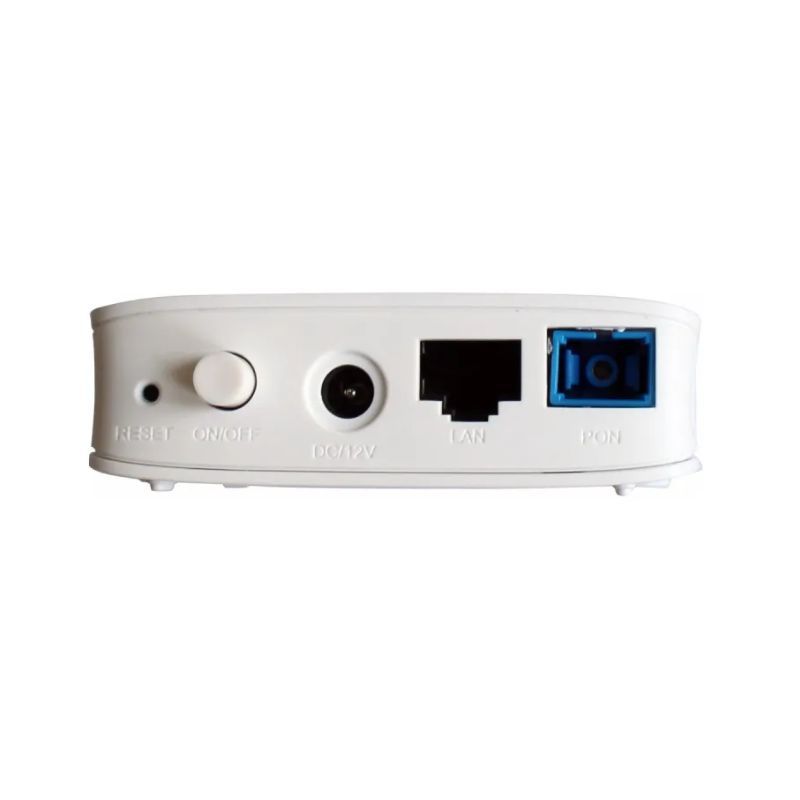

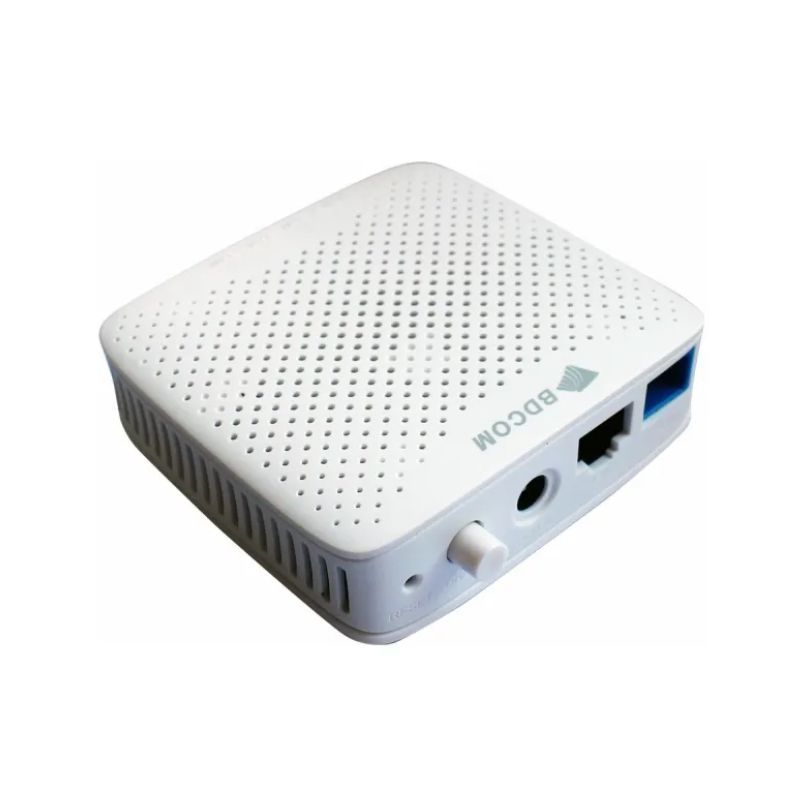

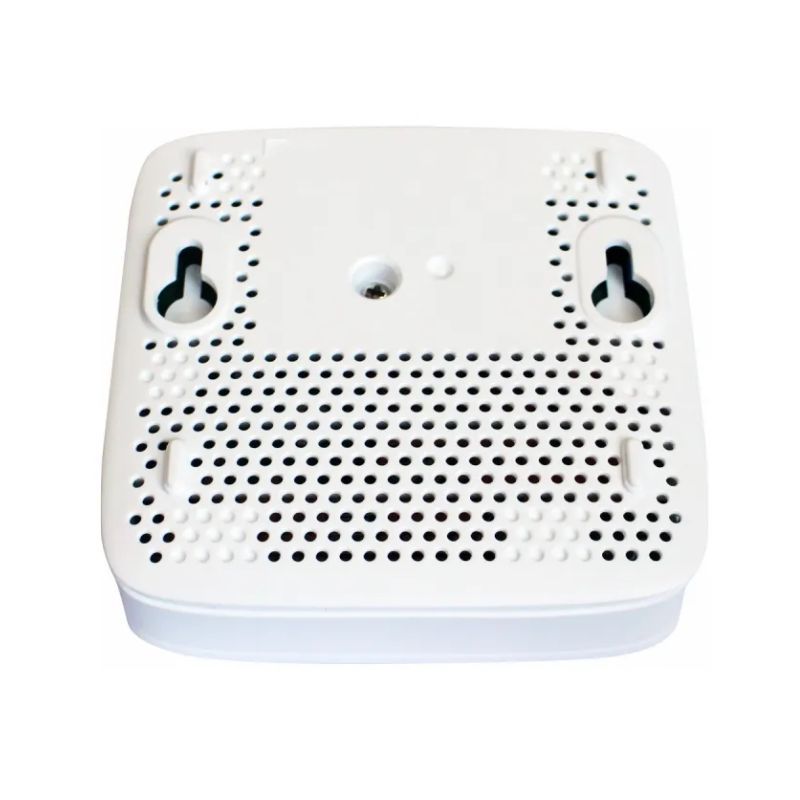

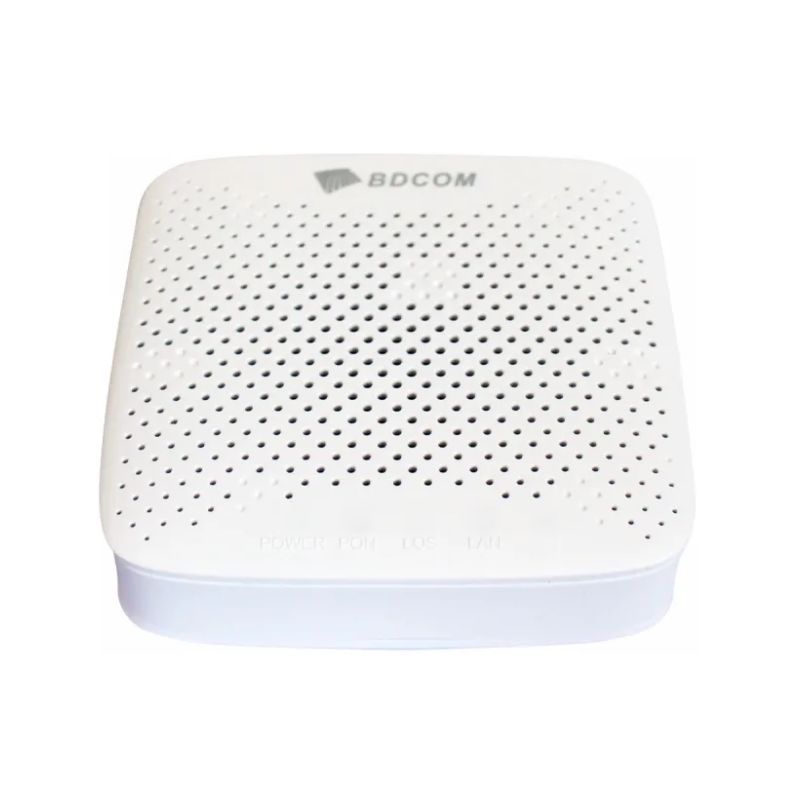

BDCOM GP1702-1G Xpon ONU with 1x GB LAN for FTTX, 2.5GB downlink, 1.25 GB uplink, 1x SC/UPC Port, 1x Gbps LAN, 12V PSU |
| Product Code | BDCOM-GP1702-1G |
| Item | GP1702-1G |
| OL | FTTB 10GE Fiber S1516 |
| GE Fiber 16GETXPorts | |
| Service interface | |
| PON ports | 1 SC/UPC |
| Ethernet ports | 1 GE TX |
| Optical power | TX power 0.5-5 dBm RX sensitive ≤-28dBm |
| Power supply | |
| AC adaptor | Input:100-240V AC Input:12V/0.5A |
| Max. consumption (W) | 6 |
| System capacity | |
| Chassis | Dimensions (WxDxH mm) 80 x 75 x 24 Weight (Kg)(empty) 0.1 |
| Package | Dimensions (WxDxH mm) 181 x 93 x 36 Weight (Kg) 0.2 |
| Environmental Specifications | |
| Operating | Temperature 0~45°C Humidity 10%~85% (noncondensing) |
| Storage | Temperature -40°C ~85°C Humidity 5%~95% (non-condensing) |
| Accessories | |
| Parts | Power adaptor |
